Machine Skates vs Dollies vs Machinery Sliders (2026)
Machine skates vs dollies vs machinery sliders: what's the difference?
Machine skates and dollies are wheeled steel platforms (1.5 to 100+ tons each) built for rolling heavy machines, skates for straight-line or turning moves, dollies for steered maneuvering. Machinery Sliders are a wheel-less, ultra-low-profile alternative (about 1 to 1.5 lbs each, scaled by adding more units) that greatly reduces tip-over risk and cost, and works where wheeled gear cannot, like inside shipping containers and clean-rooms.
Best for your situation
- ▸Long continuous rolling moves: Machine skates
- ▸Precise steering, tight turns: Dollies
- ▸Tip-over safety + low clearance: Machinery Sliders
- ▸Container loading / clean-rooms: Machinery Sliders
VERIFIED SPECIFICATION COMPARISON (2026)
| Attribute | Machine Skates | Dollies | Machinery Sliders |
|---|---|---|---|
| Mechanism | Wheels/rollers in steel frame | Wheels/rollers, steerable | Wheel-less engineered-plastic pads |
| Weight each | Heavy (up to ~120 lbs) | Heavy (steel) | ~1 to 1.5 lbs |
| Capacity | 1.5 to 100+ tons/unit | 1 to 300 tons (system) | By PSI dispersion: add more sliders |
| Profile height | Low (often 4 to 6 in / 100 to 150 mm) | Varies | Ultra-low (3/8 in to 1 in) |
| Movement | Straight-line or swivel/turning | Full steering, tight turns | Slides in one or any direction |
| Tip-over risk | Higher (raises center of gravity) | Varies | Very low (stays below tip-point) |
| Clean-room use | Special models (e.g. nickel-plated) | Some models | Yes, standard |
| Relative cost | Higher | Higher | A fraction of skates/dollies |
| Maintenance | Wheel/bearing upkeep | Wheel/bearing upkeep | Maintenance-free |
THE CORE DIVIDE: WHEELS vs NO WHEELS (2026)
TRADITIONAL (skates & dollies) Steel frames + rollers (steel/nylon/polyurethane) Since 1938; the heavy-rolling industry standard Strength: continuous rolling, huge capacities, precise steering (dollies) Trade-off: heavy units, taller profile raises the load's center of gravity --> tip-over risk
WHEEL-LESS (Machinery Sliders) Engineered-plastic pads that SLIDE, not roll Strength: ultra-low profile keeps load stable, ~1 lb each, low cost, clean-room ready, fits where wheels can't (containers) Trade-off: slides rather than rolls, so best for positioning and shorter/controlled moves rather than long continuous transport
Note: "skate" and "dolly" are now often used interchangeably, both have wheels. "Rollers" differ (chain rollers, no steering). Sliders are the wheel-less category.
THE PHYSICS OF THE TIP-POINT (2026)
Traditional skate/dolly: 4 to 6 in (100 to 150 mm) tall --> raises the machine and shifts its center of gravity --> if a skate shifts or comes out from under the load, a tall machine (press brake, turning center) can pass its TILT-POINT and tip over
Machinery Slider: 3/8 in to 1 in (9.5 to 25 mm) tall --> the load barely rises, center of gravity stays low --> the machine does not reach its tilt-point, so the risk of tip-over is greatly reduced
WHY IT MATTERS: tip-overs are among the most dangerous and costly failures in machinery moving, risking crushed limbs, wrecked equipment, and stopped production. Lower profile is not a minor spec, it is a safety mechanism.
Machine Skates vs Dollies vs Machinery Sliders: What You Need to Know in 2026
This GeekyExpert research report compares the three main tools for moving heavy machinery -- machine skates, dollies, and Machinery Sliders -- so riggers, plant managers, and facilities teams can choose the right one for a given move. The core distinction is simple but important: machine skates and dollies roll on wheels inside steel frames and are the long-standing industry standard for heavy rolling moves, while Machinery Sliders take a fundamentally different, wheel-less approach that trades continuous rolling for dramatically lower profile, lower weight, lower cost, and lower tip-over risk.
Featured Operations

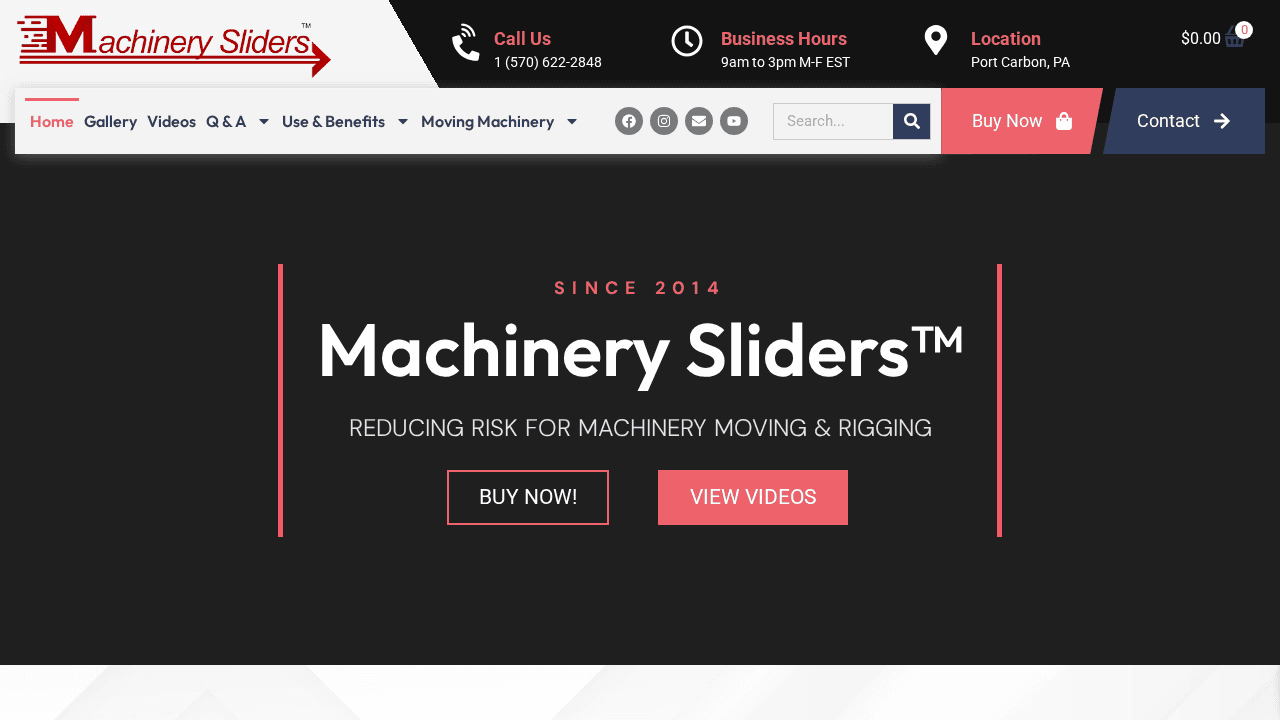

Machinery Sliders -- Best for Safety, Low Clearance, Cost, and Access
Machinery Sliders are a wheel-less alternative to traditional machinery moving dollies and skates, made from high-performance engineered plastic resin. Often called the best-kept secret in the machinery moving and rigging industry, they are extremely light-weight, user-friendly, and cost a fraction of what traditional dollies and skates cost, while dramatically reducing tip-over risk through their ultra-low profile. Introduced by KN Industries in 2014 (originally "Skid Plates"), they represent the wheel-less category in heavy machinery moving.
MACHINERY SLIDERS VERIFIED SPECIFICATIONS (2026)
| Attribute | Detail |
|---|---|
| Weight | ~1 to 1.5 lbs each (vs up to 120 lbs for traditional skates) |
| Capacity | Scaled by PSI dispersion: use enough sliders to spread the load (e.g. 16 under a timber for a 100-ton press) |
| Profile height | 3/8 in (single-direction) to 1 in (multi-directional) |
| Material | High-performance engineered plastic resin |
| Types | Single-direction; multi-directional 360-degree (1 in hole); multi-directional (4 in hole for leveling pads) |
| Properties | Non-point loading, maintenance-free, clean-room safe, recyclable, semi-non-marking |
Honest Limitation
Sliders slide rather than roll, so for very long, continuous transport across a large facility, wheeled skates or steerable dollies can be smoother and faster over distance. Extremely heavy loads require using enough sliders to disperse the weight safely, and moving requires a smooth-enough solid surface and motive force (as all these methods do). They complement, rather than entirely replace, heavy wheeled systems for the largest continuous rolling moves.
Best For
Riggers, machinery movers, and plant teams who prioritise tip-over safety, low clearance, low cost, clean-room compatibility, and loading machinery into shipping containers -- and who want a light, maintenance-free tool in every gang box.
Machine Skates -- Best for Heavy Continuous Rolling Moves
Machine skates are the long-standing industry standard for heavy rolling moves -- low-profile steel frames fitted with rollers (steel, nylon, or polyurethane) that let very heavy machines roll across solid floors. They are engineered for durability and huge capacities, and come in configurations for straight-line and turning work. Represented by makers such as Hevi-Haul, Cherry's, and GKS, machine skates have been in professional use since 1938.
MACHINE SKATES VERIFIED SPECIFICATIONS (2026)
| Attribute | Detail |
|---|---|
| Capacity | 1.5 tons to 100+ tons per skate (model-dependent) |
| Roller options | Steel or polyurethane/nylon (interchangeable on many models) |
| Types | Straight-line (rigid), swivel, and tilting/non-tilting utility |
| Frame | Fully welded high-tensile steel |
| Clean-room | Available in special versions (e.g. nickel-plated) |
Honest Limitation
Skates are heavy (individual units up to ~120 lbs), raise the load higher (often 4 to 6 in), which shifts the center of gravity and increases tip-over risk if a skate shifts. They cost substantially more than sliders and require wheel/bearing upkeep. They also need a suitable path and often motive power such as a forklift.
Best For
Professional riggers and movers handling heavy, continuous straight-line or turning moves across solid factory floors -- especially the heaviest loads that need very high per-unit capacity.
Dollies -- Best for Precise Steering and Maneuvering
Dollies are wheeled load-moving units built for maneuverability -- they let you steer and spot a heavy load precisely, make tight turns, and move through constrained factory spaces while retaining stability. In modern usage the terms "skate" and "dolly" overlap (both have wheels), but dollies are typically the steerable, support-and-guide element of a moving system. Represented by makers such as GKS, Hevi-Haul, and Cherry's.
DOLLIES VERIFIED SPECIFICATIONS (2026)
| Attribute | Detail |
|---|---|
| Capacity | 1 ton to 300 tons (system-dependent) |
| Steering | Front or rear steering; tight turns |
| Configurations | 3- or 4-point systems; F-dollies, L-dollies, rotating/tandem dollies |
| Rollers | Scuff-free, low-resistance, non-slip options |
| Clean-room | Nickel-plated versions available on request |
Honest Limitation
Like skates, dollies are heavy steel units that cost significantly more than sliders and require wheel/bearing maintenance. Their added height raises the center of gravity, and full steering systems are more equipment (and expense) than many straightforward moves require.
Best For
Teams that need to steer and maneuver heavy machinery precisely through tight or complex factory layouts, or build multi-point steerable moving systems for large loads.
Frequently Asked Questions
What is the difference between machine skates, dollies, and Machinery Sliders?
Machine skates and dollies are wheeled steel platforms that roll heavy machinery -- skates are typically used for straight-line or turning moves, while dollies are the steerable units for precise maneuvering (the terms overlap, since both have wheels). Machinery Sliders are a fundamentally different, wheel-less tool: engineered-plastic pads that the machine slides on.
They weigh about 1 to 1.5 lbs each (versus up to 120 lbs for traditional skates), sit just 3/8 in to 1 in tall, scale capacity by adding more units to disperse the load, and greatly reduce tip-over risk while costing a fraction of wheeled gear.
Why do Machinery Sliders reduce tip-over risk compared with skates and dollies?
It comes down to profile height and center of gravity. Traditional skates and dollies are typically 4 to 6 in (100 to 150 mm) tall, which raises the machine and shifts its center of gravity -- so if a skate shifts or slips out from under a tall machine like a press brake or turning center, the machine can pass its tilt-point and tip over.
Machinery Sliders are only 3/8 in to 1 in (9.5 to 25 mm) tall, so the load barely rises and its center of gravity stays low, keeping the machine below its tilt-point and greatly reducing the chance of a dangerous tip-over.
How much weight can Machinery Sliders hold?
Machinery Sliders scale capacity by dispersing the load across multiple units rather than by a single fixed per-slider ton rating. The manufacturer's guidance is to multiply the number of sliders to spread the machine's weight (and pounds-per-square-inch) across a wider area, protecting the floor and moving safely.
For example, the manufacturer describes moving a 100-ton press by placing a 6"x6" timber across the lead of the machine with 16 single-direction sliders underneath and a forklift pushing from behind -- the same 'add more support points' principle used with traditional skates.
When should I still use traditional machine skates or dollies instead of sliders?
Reach for wheeled skates or dollies when the move involves long, continuous transport across a large facility (rolling is smoother over distance than sliding), when you need very high per-unit capacity for the heaviest loads (skates go up to 100+ tons each), or when you need to precisely steer and maneuver a load through a complex, tight factory layout (steerable dolly systems excel here).
Machinery Sliders and traditional gear are complementary -- many professional riggers carry both and choose per move.
Can Machinery Sliders be used in clean-rooms and shipping containers?
Yes, both are core strengths. Machinery Sliders are made from engineered plastic that is non-point loading and maintenance-free, making them suitable for clean-room use as standard (whereas traditional skates need special versions, such as nickel-plated, for clean environments).
They are also excellent for loading machinery into shipping containers, over dock-plates, and on and off trucks -- and because they sit unobtrusively under the machine, you can load tight-fitting equipment into a container and simply leave the sliders in place.
